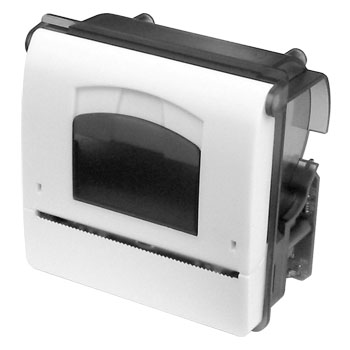

	Thermal Receipt Print Module   　Model: TS-21 　Color solutions: 　1) Panel/White +Cabinet/Black transparent. 　2) Panel+Cabinet/Black transparent. 　3) MOQ 1000PCS for other color.

　　Function & Features:
　　◆　Easy paper loading structure, stylish and elegant appearance.
　　◆　High print speed, low power consumption, and low work noise
　　◆　Easy to operate & reliable
　　◆　Optional RS232 or TTL communication interface.
　　◆　Can be set to print 48 or 32 English letters per line. (eq. 24 or 16 Chinese characters per line)
　　◆　Support line printing mode and page printing mode.
　　◆　Built-in one or more languages ??encoded font support appropriate language characters print according to customer requirements
　　◆　Support software updates
　　

　　Key Parameters:

ITEM	PARAMETERS
Print method	Termal dot line printing
Print color	Black
Print density	203dpi/inch(8dot/mm)
Print dots/line	384
Print speed	≥50mm/s
Paper load method	Easy load
Printing life	≥50Km
Print paper	Thermal Paper roll, 57.5±0.5mm(W)×?40mm(max)
Print width	48mm
Communication interface	RS-232
Detection function	Less paper
Status indicator	LED(Light/Normal,Flash/Error)
Compatible command set	ESC/POS
Character size	West word(8×16, 12×24), Chinese(16×16, 24×24)
Character set	ASCII, GB13000
Printing content	Chinese, Englis letters, Arabic numbers, Symbol, curve, Image, etc.
	Barcode: CODE39/93/128, CodeBAR, EAN-8, EAN-13, UPC-A/ITF, etc.
Image Printing method	Direct print/page mode
Power in	DC 5-9V, 3A
Net Weight	145g
Dimension(mm)	77.5×76.5×48(W×D×H)
Install size(mm)	73.5×72.5(W×L)
Install depth(mm)	37
Work Environment	Temperature: -10℃~40℃; Humidity: 20%~85% RH
Storage Environment	Temperature: -20℃~50℃; Humidity: 10%~95% RH
